A complete home PC assembly. Page 3 of 10.

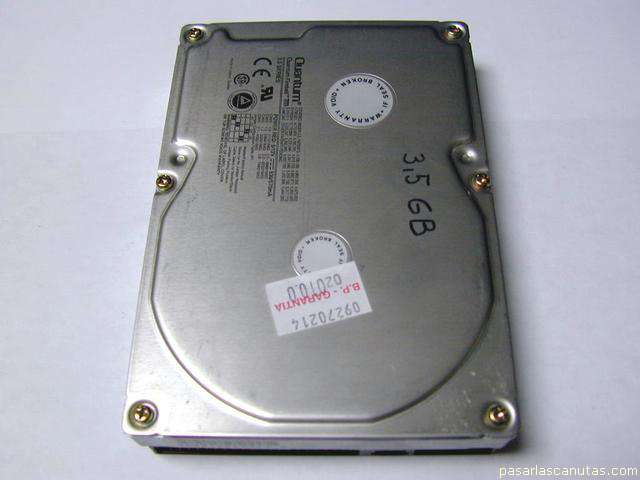

I took this hard disk from other PC: it is an old and good 3GB Quantum ... 		PCassembly505431.JPG

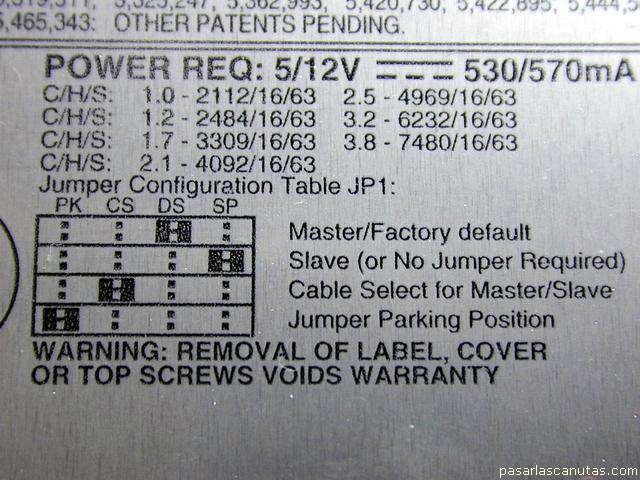

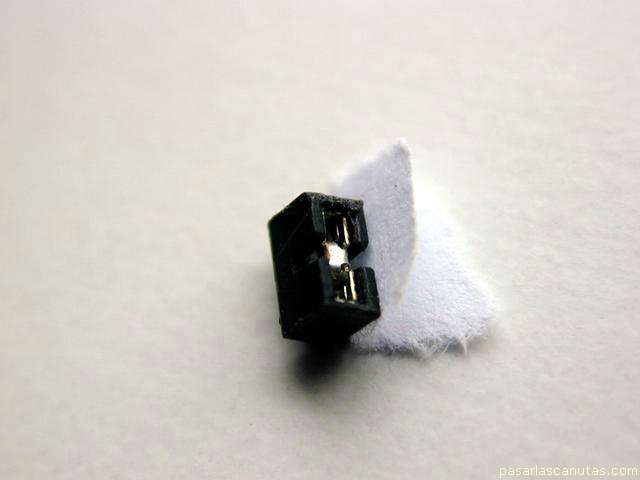

... I check the MASTER configuration in the box... 		PCassembly505432.JPG

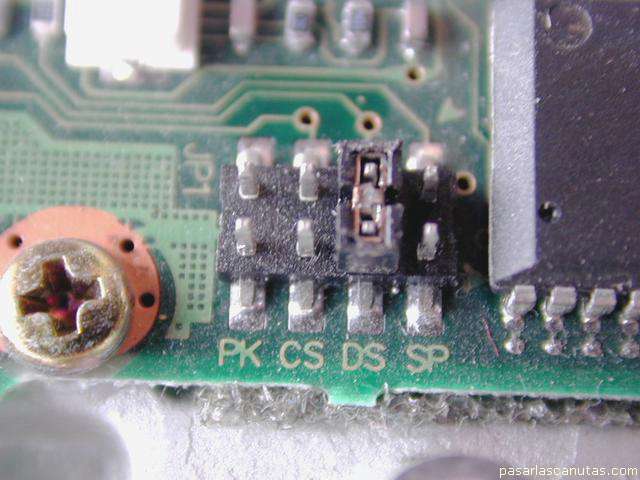

... and place the plug ... 		PCassembly505433.JPG
... in DS.

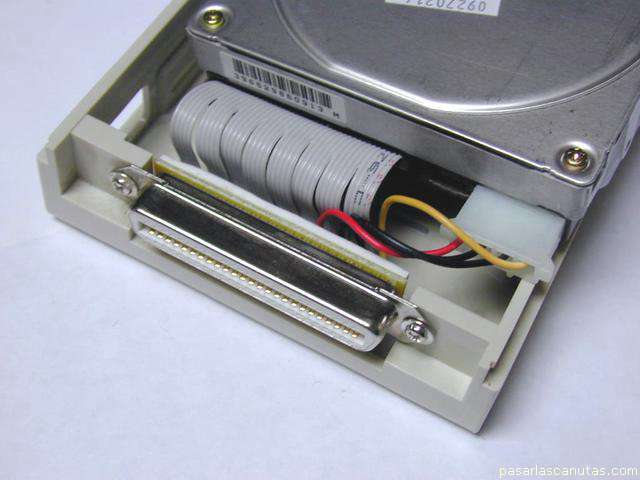

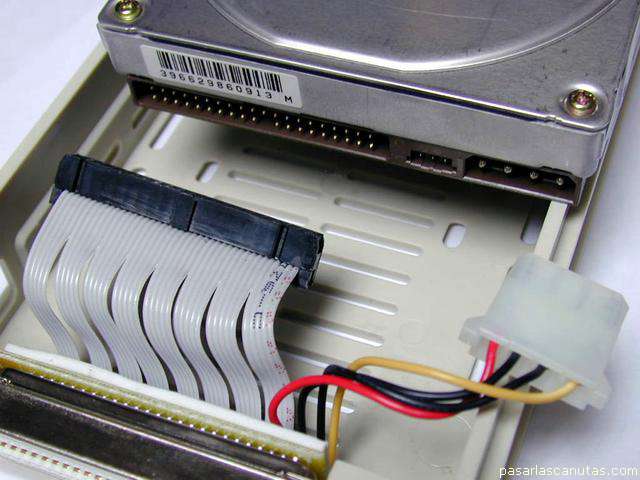

Now I connect ... 		PCassembly50545.JPG

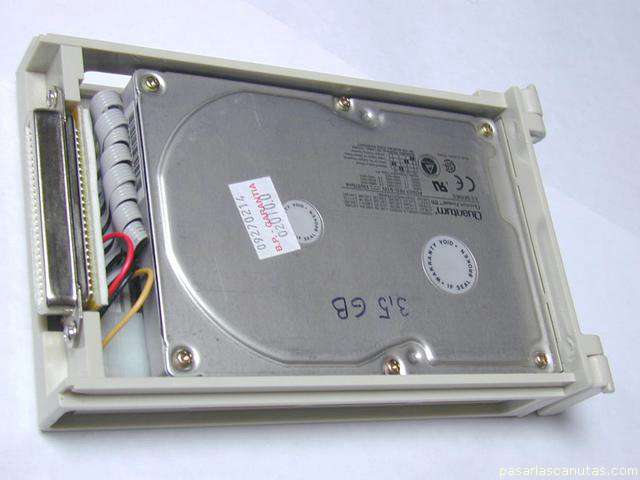

... the disk flat cable and the power ... 		PCassembly50546.JPG
... and place the disk in the removable ... 		PCassembly50547.JPG

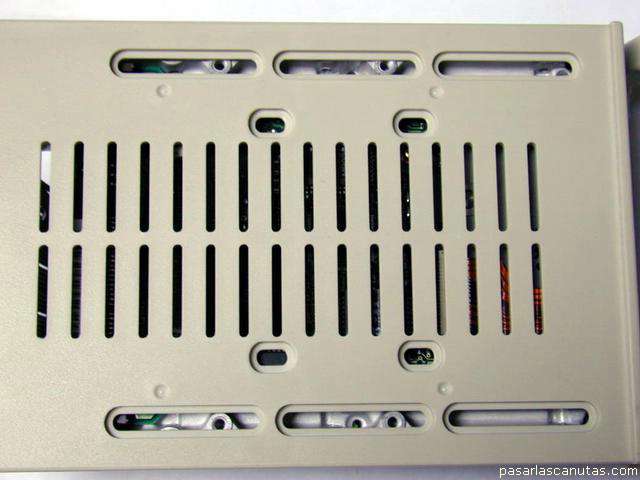

... find the four screwing points ...

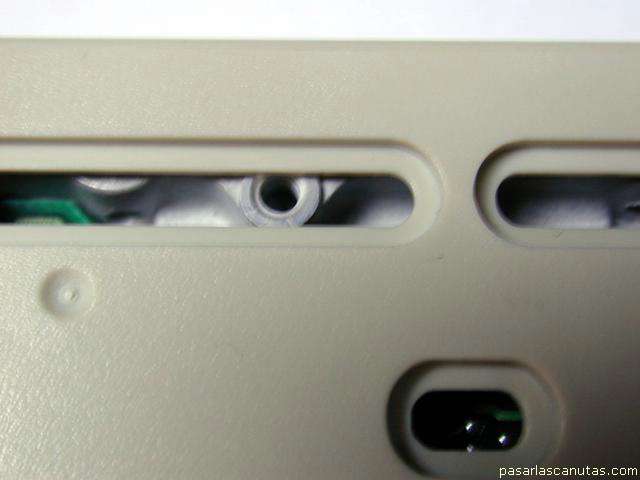

... (detail of one of them) ... 		PCassembly50549.JPG

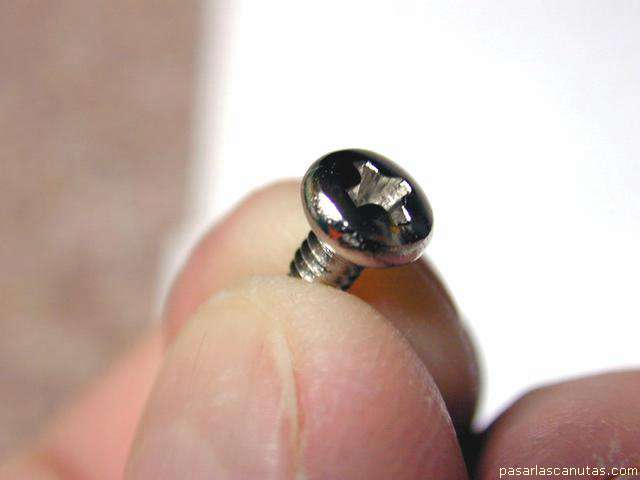

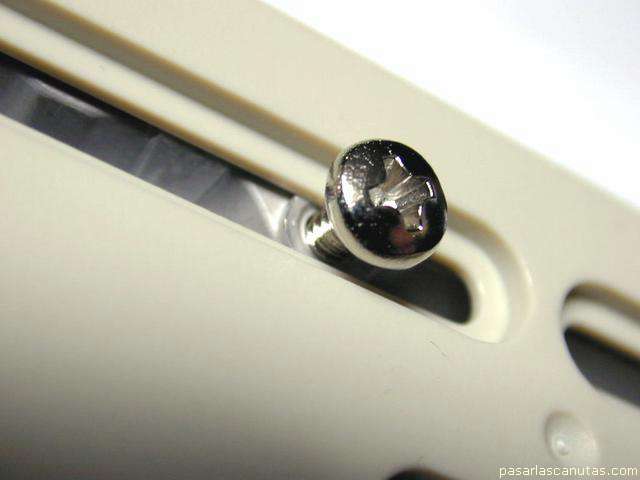

... and with these screws ... 		PCassembly5055.JPG

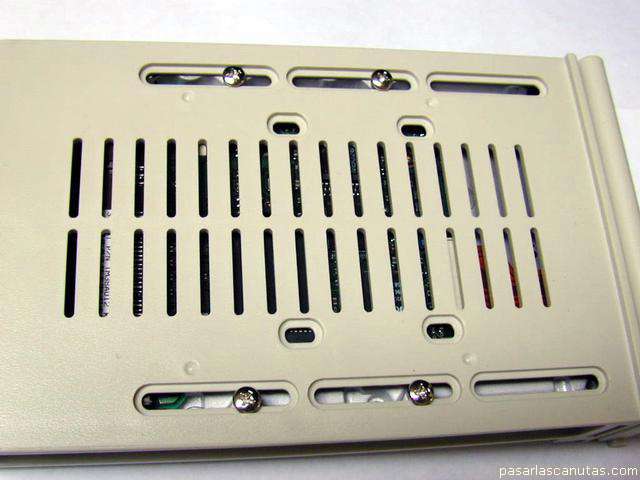

... I attach the disk to the removable part of the mobile rack. 		PCassembly50553.JPG

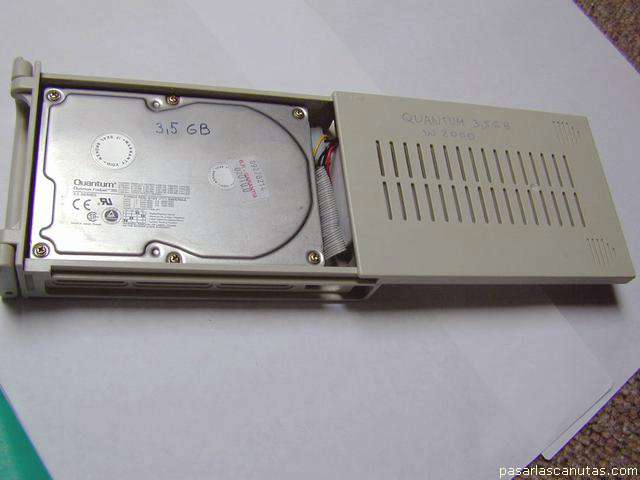

Now I place the cover ...

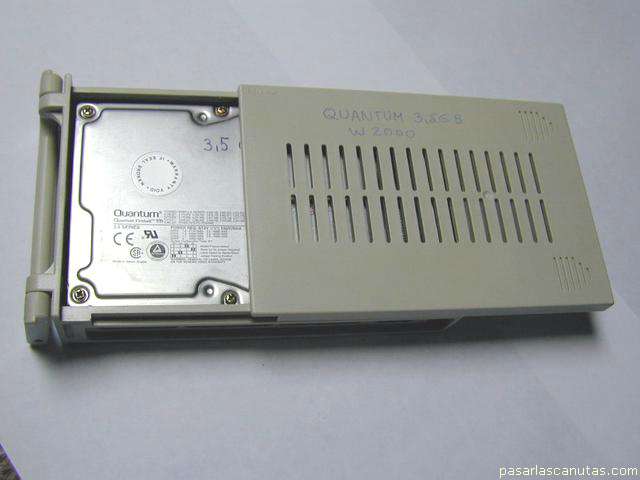

... and slide it ... 		PCassembly50555.JPG

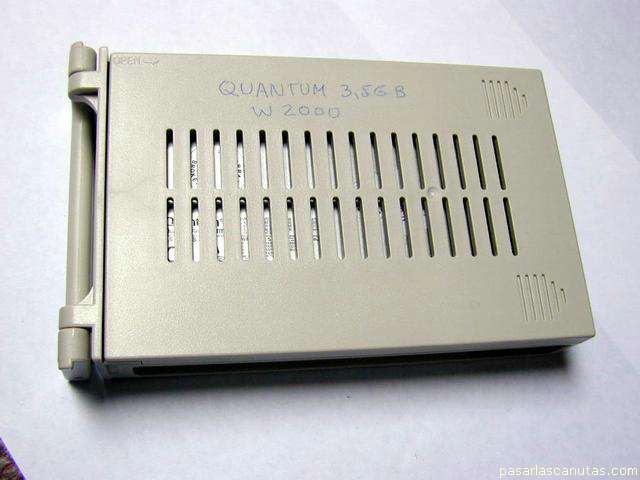

... until closing ... 		PCassembly50556.JPG

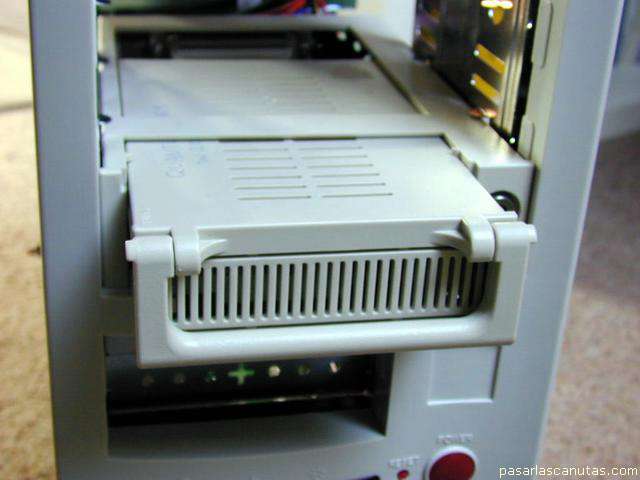

... and I introduce the removable in the mobile rack base ... 		PCassembly50559.JPG
... holding the base from behind, since I have not yet placed the screws for it ...

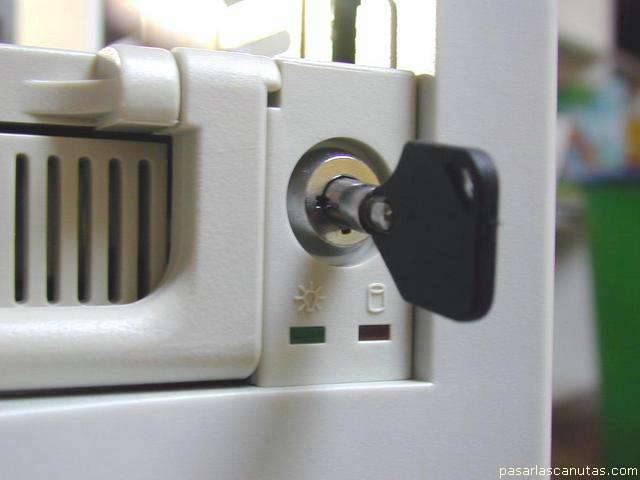

... now the removable is plugged ... 		PCassembly50561.JPG

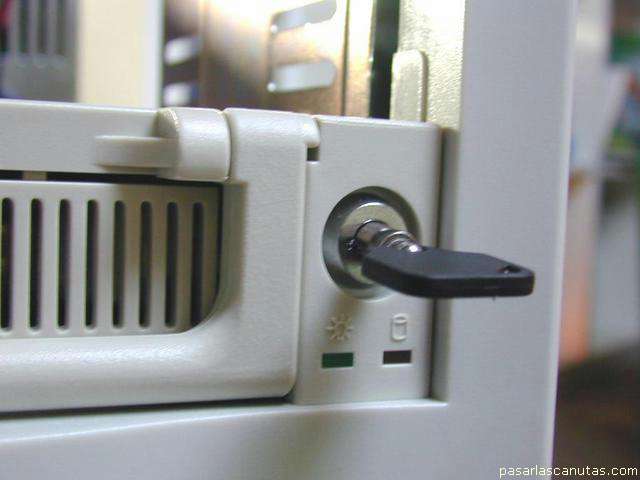

Detail of locking ... 		PCassembly50562.JPG

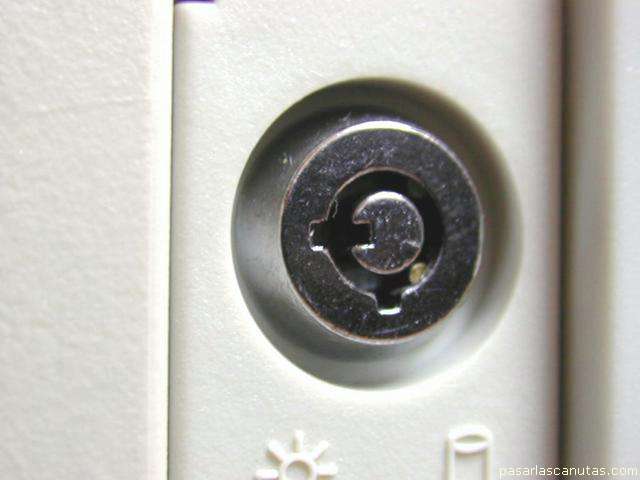

... with the key ... 		PCassembly50563.JPG

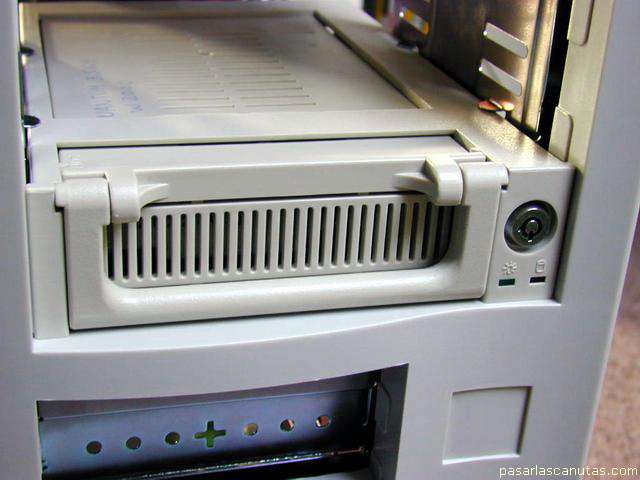

...this is the operation position.
